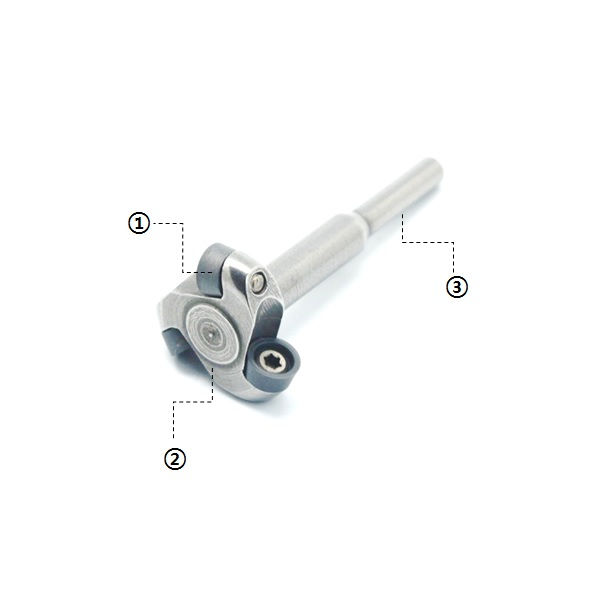

Manpa Mini Carving Bits - DCR Round 3mm shank
Usage
  • Mini Carving Bits - Round Type (1/8" Shank)
  • Smooth & Power Carving with Sharp Cutter 5mm (Replaceable)
  • Detail & Sculpting Performance
  • Specialized for Textures

Specifications
  • Max. Blade Diameter: 16 mm
  • Max. Carving Depth: 22 mm
  • Max. RPM: 25,000 rpm
  • Power: 90 Watt
  • Shank Size: 1/8" Shank
  • Weight: 0.1kg
  • Overall Length: 35 mm
  • Blade Type: Round
  • Blade Width: 5 mm
  • Number of Teeth: 3 EA

Features
  • Replaceable Blades & Bolts: When blades & bolts are worn, Users can easily change the worn parts.
  • 1 Shank Type:  Choose the appropriate Shank Tool Recommended tool : Dremel etc
  • Must use the right Die grinder and Grab the tools with two hands for safety.Two Hands Grip
  • Texture​​: Tools are designed with smooth carving for Texture on wood.

What's included.
Main Component ​① Mini Carving Bits - DCR
​Accessories ​② T6 Torx Wrench

Do not use "Drill Chuck"
Users need to know that Drill chuck can not perfectly hold the Shank tools. Do not use the Drill chuck adapter.
Do not use "Flexible Shaft"
Users need to know that Flexible Shaft can lower the speed and power. So, it can damage to the Shank tools.

Manpa Mini Carving Bits - DCR Round 3mm shank

SKU: MANPA-MP21-24-DCR
$95.00Price
    • Please read and follow all safety instructions carefully. Please keep the manual for future reference.
    •  When operation, always wear safety equipment such as face masks and safety goggle.
    • Always secure the workpiece securely when working.
    • Make sure that the grinder switch is off before plugging in the power cord.
    • Be careful not to touch the cutter blade. Serious injury may result.
    • Always operate the tool with both hands firmly gripped, and never leave the tool with rotation.
    • When using the tool, always adjust the appropriate RPM.
    • After operation, turn off the switch and set it down when The remaining rotation stop completely.
    • Please be sure to use it carefully because it may cause the rotation reaction(kick back) depending on the direction of rotation.
    • Please remove the stone, sand and other material beforehand to use. If not, you may get blades damage.
    • Inspect and tighten the bolts of each part before operation.
    • After working, please keep clean so that there is no foreign matter such as dust, sawdust and rosin.
    • If the cutter blade or belt is worn out, replace it with a new one.
